press form and method screw press / cold press method
motor power 750 w (ecoline)
power source 220 - 240 volt / single phase
energy consumption 200 - 450 watt / hour
gearbox helical gear shaft
thermostat 600 watt
length x width x height 840 x 240 x 540 mm
weight 63 kg
hourly capacity between 1 and 50 kg // maximum 1,200 kg per day (may vary depending on the input grain size, homogeneity, temperature and purity)
scope of application food manufacturing, chemical products, pharmaceuticals and others

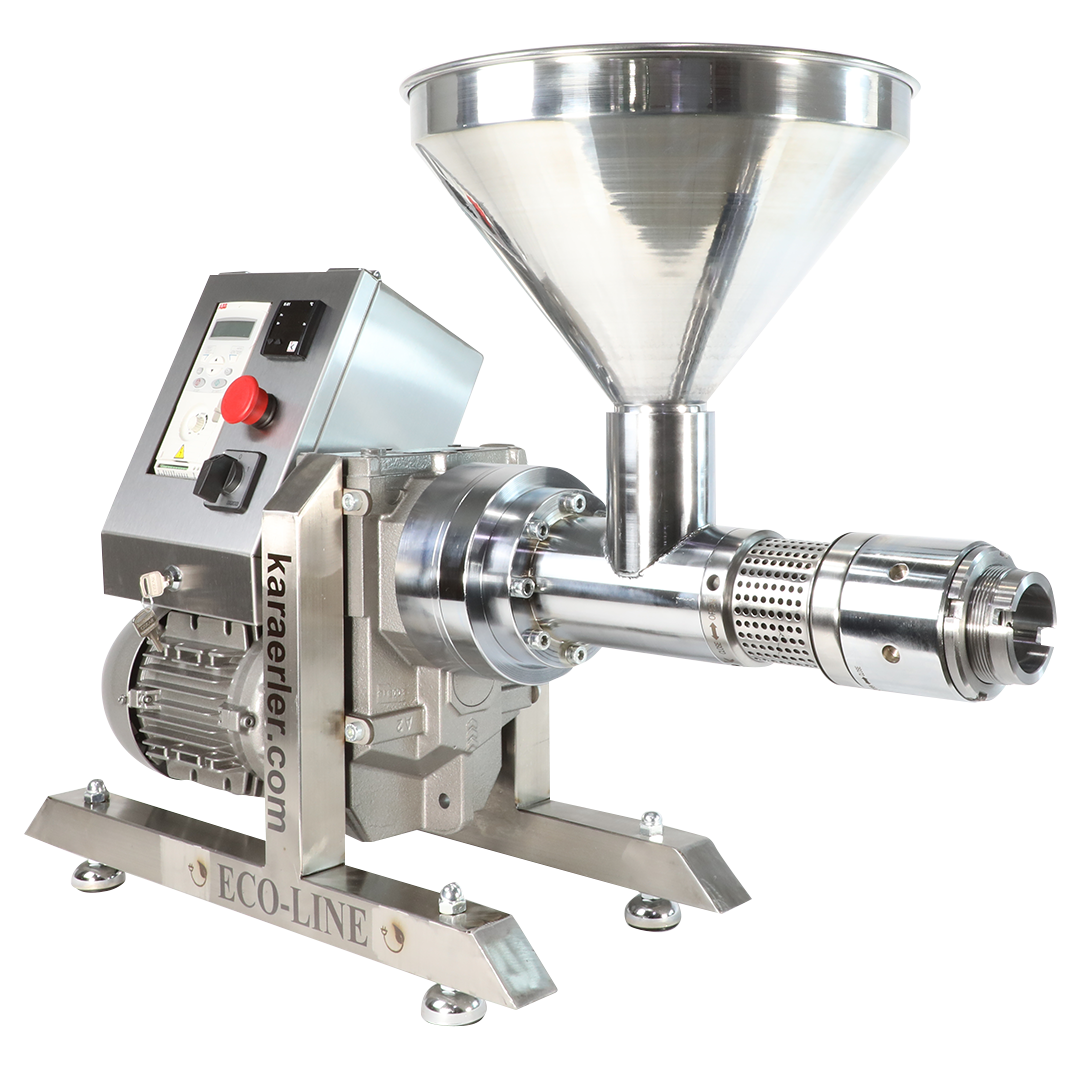

Our NF500 cold press oil machines have a DOUBLE BEARING SYSTEM (PATENTED) and are produced using GERMAN MOTOR and GERMAN REDUCER.
GERMAN MOTOR AND REDUCER; (1) it is more durable, (2) provides worldwide technical service, (3) it consumes 50% less energy, (4) it has more windings than its counterparts, (5) it is produced exclusively for Karaerler Makine.
DOUBLE BEARING SYSTEM; (1) Increases machine life, (2) prevents engine overheating, (3) enables the gearbox to rotate more easily, (4) prevents the bearings from breaking, (5) presses hard seeds easily.
The cold pressing temperature is around 40 degrees Celsius and leaves a maximum of 6% unpressed oil in the pulp (cake). It has been designed to work for many years without the need for spare parts. It is easy to use and is widely preferred in homes and workplaces. Online technical service is always available. The only manufacturer of the machine is Karaerler, there is a spare part warranty.
For more detailed information, you can visit our blog »
With the NF500 Cold Press Oil Machine, you can extract oil from the following seeds and nuts:
Black Cumin, Sunflower Seed, Safflower, Canola, Pistachio, Pumpkin Seed, Melon Seed, Babassu, Palm, Cumin, Grape Seed, Coconut, Bay Seed, Apricot Kernel, Sesame, Hazelnut, Peanut, Walnut, Poppy, Flax Seed Cotton Seed, Almond, Jajoba, Mustard Seed, Nettle Seed, Raspberry Seed, Pepper Seed, Tomato Seed, Rosehip Seed, Jatropha, Cocoa Seed, Soybean, Blueberry Seed, Pomegranate Seed, Boiled Seed, Indian Fig Seed, Fig. Seed, Lemon Seed, Chia Seed, Amarant (Cockerel), Hemp, Camelina (faux flax), Moringa, Rapeseed, Baobab Seed, Argan Seed, Evening Primrose Seed, Cotton Seed, Camel Thistle Seed, Cherry Seed, Watermelon Seed, Menengiç Seeds, Avocado, Orange Peel, etc.
Our cold press oil machines are the ONLY PATENTED MACHINE in its class in Turkey. Cold press machines have ISO, CE and Conformity Certificates and Domestic Goods Certificates. It is also produced as stainless steel and a separate offer must be obtained.
